乣丂儕儌僐儞僨乕僞偺昞帵宍幃丂乣
仠僨乕僞昞帵宍幃
仜價僢僩僗僩儕乕儉宍幃
*** AO-3000 Ver.01-00 *** 2005/07/18 15:30:22
LineNo. TimeStamp Bit Stream Data
001-0001 15:30:55.105 (S) 1111 0000 0001 0101 0000 ....
001-0002 15:30:55.210 (S) 1111 0000 0001 0101 0000 ....
001-0003 15:30:55.315 (S) 1111 0000 0001 0101 0000 ....
002-0001 15:30:58.330 (S) 1111 0000 1101 1000 0000 ....
002-0002 15:30:58.435 (S) 1111 0000 1101 1000 0000 ....
仜僿僉僒乮LSB-1st乯宍幃
*** AO-3000 Ver.01-00 *** 2005/07/18 15:45:18
LineNo. TimeStamp LSB-1st Hexadecimal
001-0001 15:45:06.450 (S) f0 8a 00 b2 ....
001-0002 15:45:06.545 (S) f0 8a 00 b2 ....
001-0003 15:45:06.740 (S) f0 8a 00 b2 ....
002-0001 15:46:21.930 (S) f0 2a 02 b2 ....
002-0002 15:46:22.013 (S) f0 2a 02 b2 ....
仜僿僉僒乮MSB-1st乯宍幃
*** AO-3000 Ver.01-00 *** 2005/07/18 15:51:05
LineNo. TimeStamp MSB-1st Hexadecimal
001-0001 15:51:12.660 (S) f0 15 00 34 ....
001-0002 15:51:06.755 (S) f0 15 00 34 ....
001-0003 15:51:06.850 (S) f0 15 00 34 ....
002-0001 15:53:21.288 (S) f0 45 04 34 ....
002-0002 15:53:22.382 (S) f0 45 04 34 ...
仜價僢僩&僿僉僒宍幃
*** AO-3000 Ver.01-00 *** 2005/07/18 16:02:44
LineNo. TimeStamp BitStream/LSB-1stHex/MSB-1stHex
001-0001 16:02:48.702 (S) 1111 0000 0001 0101 0000 ....
(S) f0 8a 00 b2 ....
(S) f0 15 00 34 ....
001-0002 16:02:48.798 (S) 1111 0000 0001 0101 0000 ....
(S) f0 8a 00 b2 ....
(S) f0 15 00 34 ....

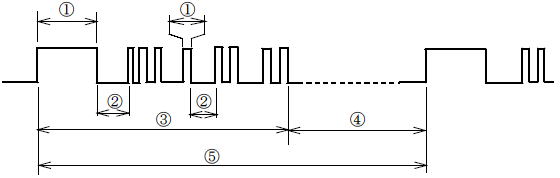

Line/Time 丂丂: 001-0002 16:08:31.952
H/B Carrier 丂: 128,16,16,16,16,16,16,16,16,16,16,16,16,16,...丂仼 嘆
H/B Blank 丂丂: 64,16,48,16,16,16,16,16,16,16,16,16,16,16,48,...仼 嘇
Bit Stream丂丂: (S) 0100 0000 0000 0100 0000 1101 0000 0000....
LSB-1st Hex 丂: (S) 20 02 0b 00 d3 d8
MSB-1st Hex 丂: (S) 40 04 0d 00 bc b1
Valid Bits丂丂: 48 bits 丂丂丂仼 仸僨乕僞偺桳岠價僢僩悢
Carrier Prd.丂: 27.25 us丂丂丂仼 仸僉儍儕傾偺廃婜
Carrier Freq. : 36.60 KHz丂丂 仼 仸廃攇悢
Length Time丂 : 59.84 ms 丂丂 仼 嘊仸僨乕僞偺挿偝
Interval Time : 74.82 ms 丂丂 仼 嘋 仸慜偺僨乕僞偲偺娫妘
Cycle Time丂丂: 134.57 ms丂丂 仼 嘍 仸僨乕僞偺弌尰娫妘
